DEFENDER TRAC 110

ABOUT THE DEFENDER TRAC 110

With the need for a vehicle with the capabilities of an agricultural tractor and a commercial tipper, that wasn't a large as a Mercedes Unimog, I decided to convert a Land Rover Defender 110 High Capacity to fulfil these requirements.

Having removed the Land Rover Defender High Capacity rear body, I shortened the rear cross member and strengthened the rear chassis. This gave me the space to fit the rear 3 point linkage from a David Brown 996 tractor. I constructed an attachment frame for the rear axle to take the 3 point hitch lower bars. To counteract any movement in the suspension when the 3 point linkage is used I installed heavy duty springs and 'helper' air bags in the rear. To aid with the control of the 3 point hitch I sourced the Bosch Electronic Hitch Control System from a Massey Ferguson 3060 tractor, this will help with implement control from inside the the Land Rover Defender cabin.

FUNCTIONALITY


  • 60lpm Hydraulic Pump
  • 3 Point Link CAT 1
  • Electronic Hitch Control
  • Hydraulic Rear Pickup Hitch
  • Front and Rear Hydraulic Services
  • Air Compressor 174lpm at 135psi
  • Rear Suspension Air Bag Support
  • 3-way Rear Tipping Body
  • 540rpm PTO
THE VEHICLE

DEFENDER TRAC 110

Click on the images to enlarge

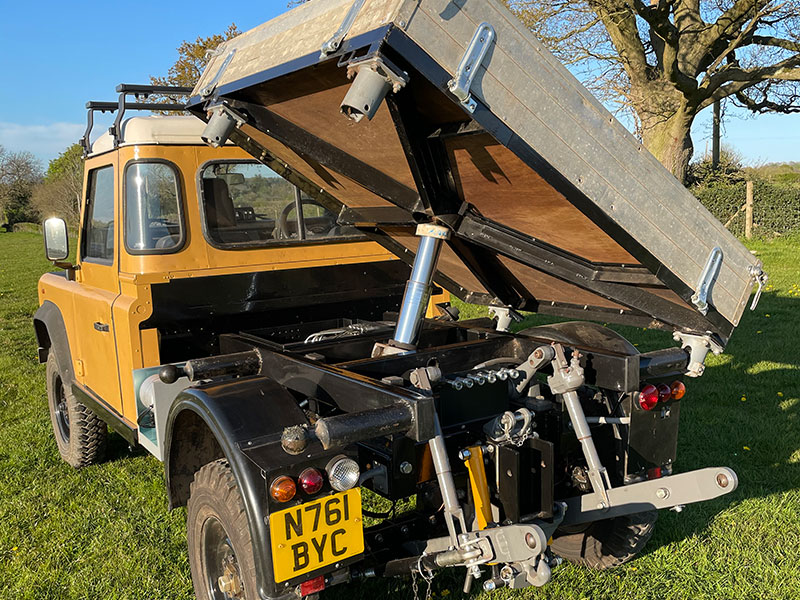

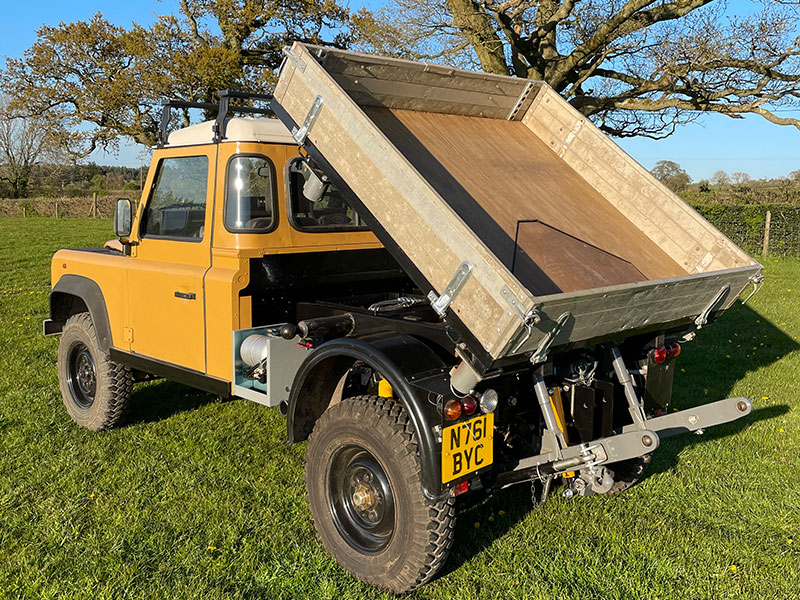

Rear 3-way tipping body
Sideways tipping body
Removeable rear panel for linkage access

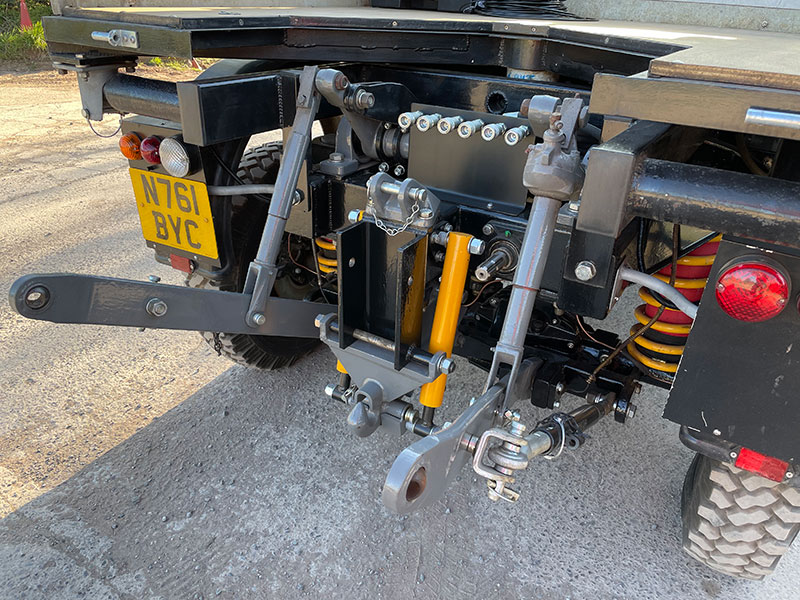

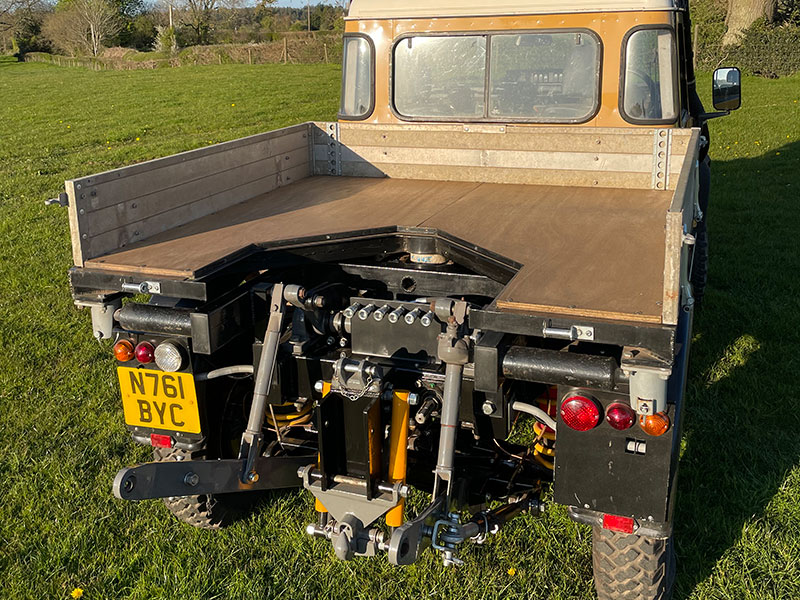

Rear 3 point linkage

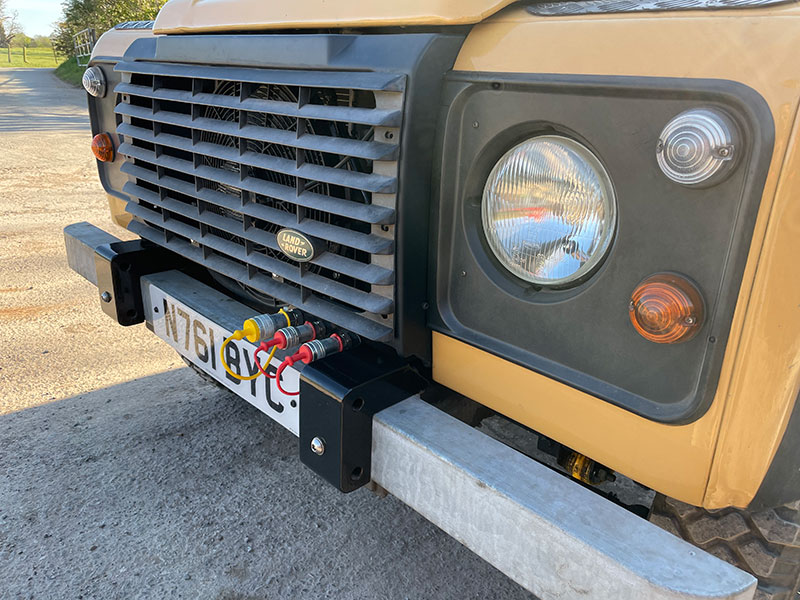

Front hydraulic services

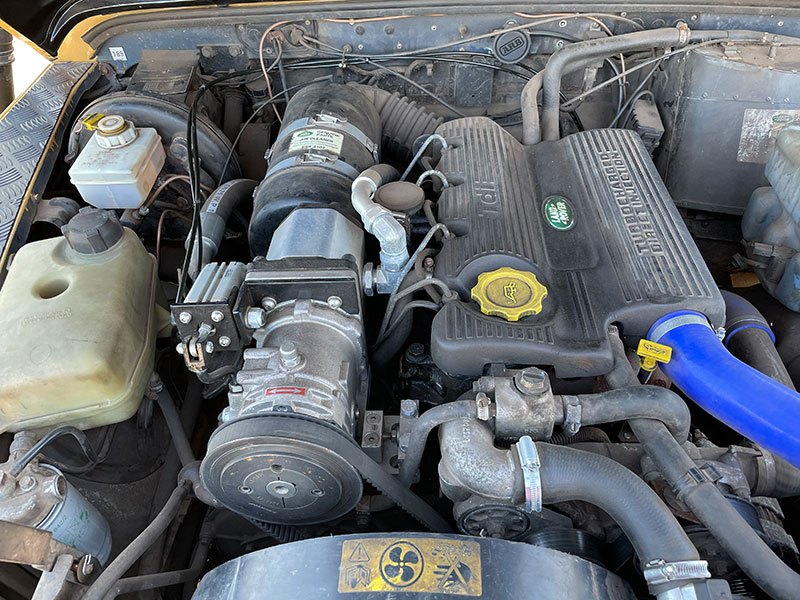

Engine mounted hydraulic pump

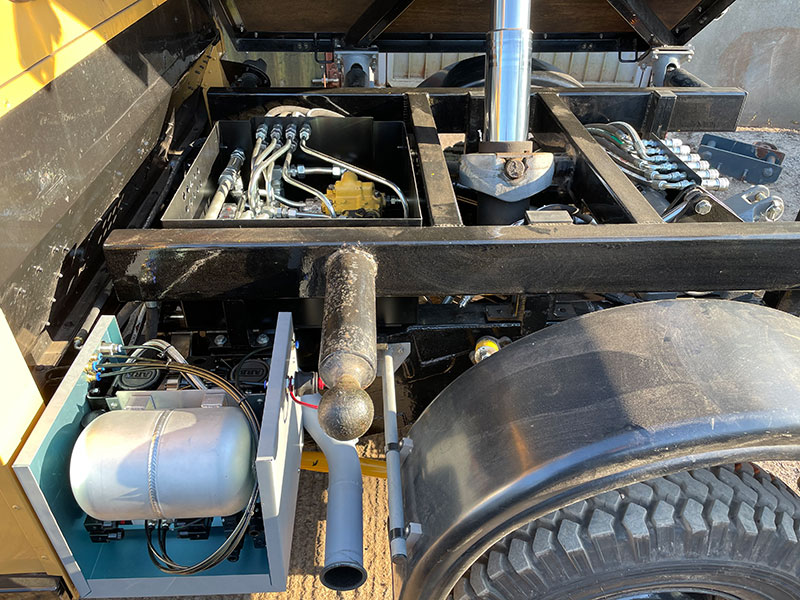

Rear hydraulic and pneumatic services

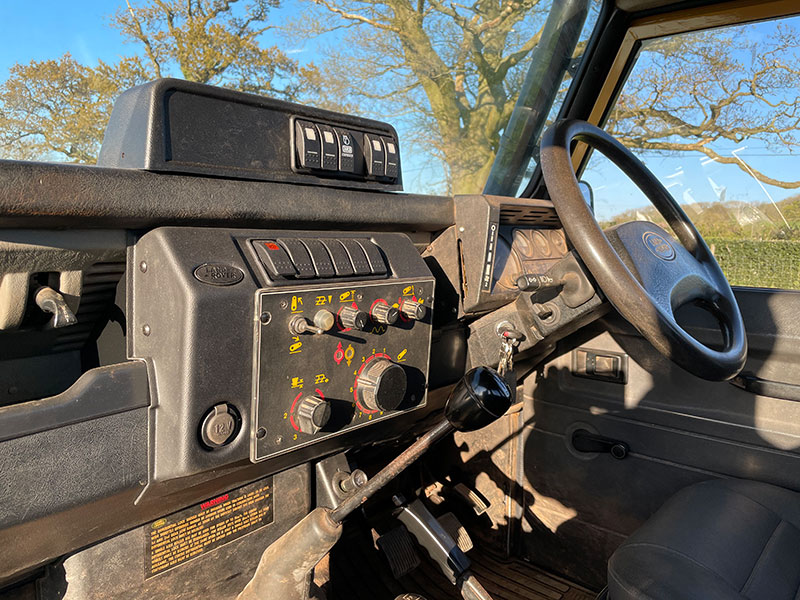

System control dashboard
THE BUILD

DEFENDER TRAC 110

Click on the images to enlarge

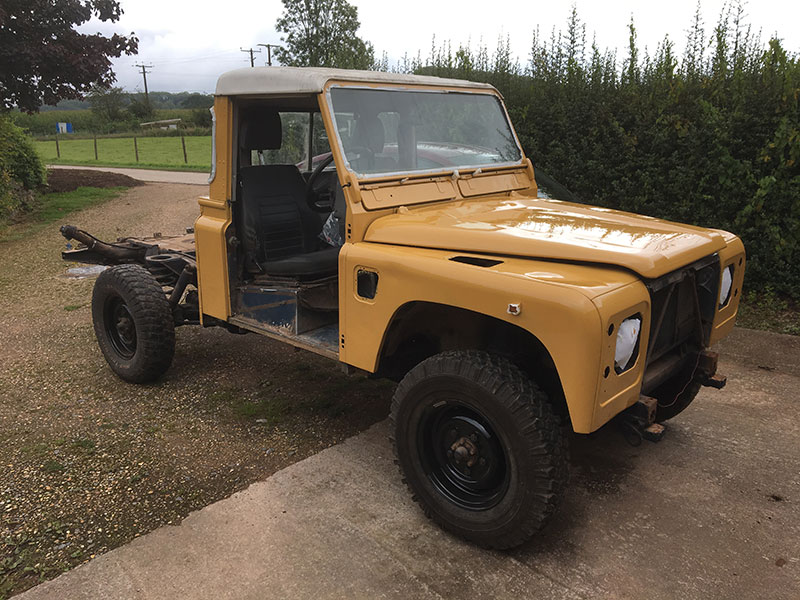

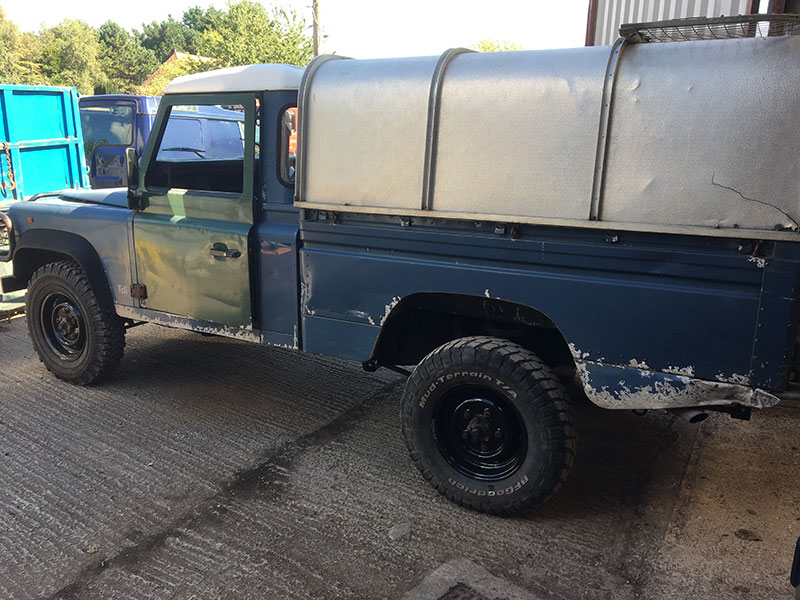

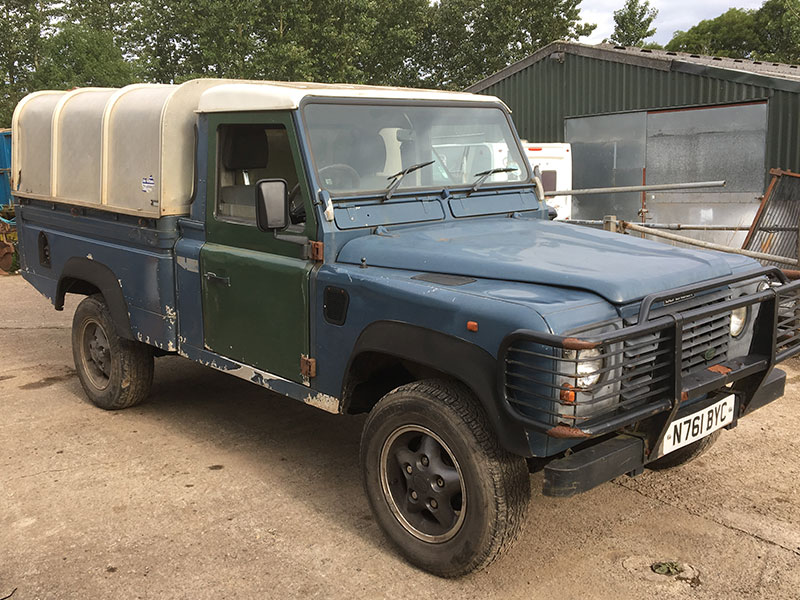

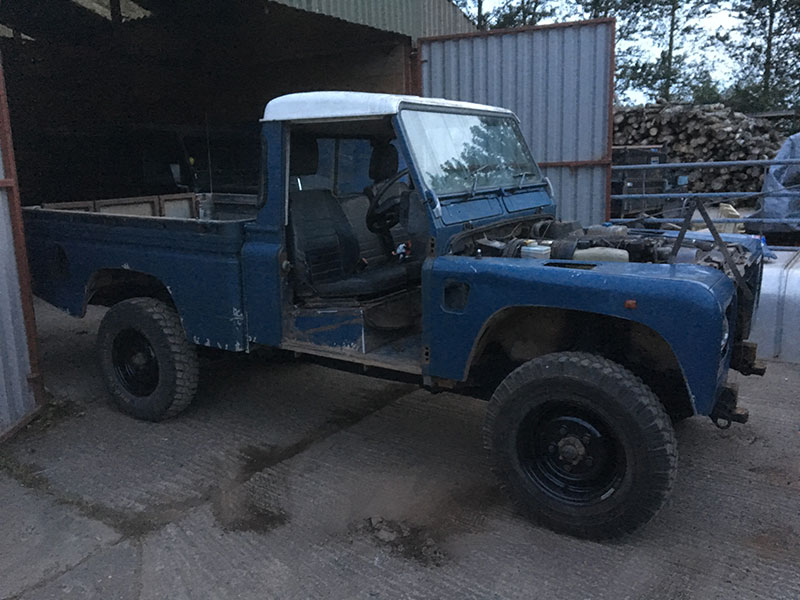

Original Hi-Cap body
Body dis-assembly
Body panels striped
Bodywork repainted

Rear Chassis Frame Fabrication.

Rear chassis rebuild

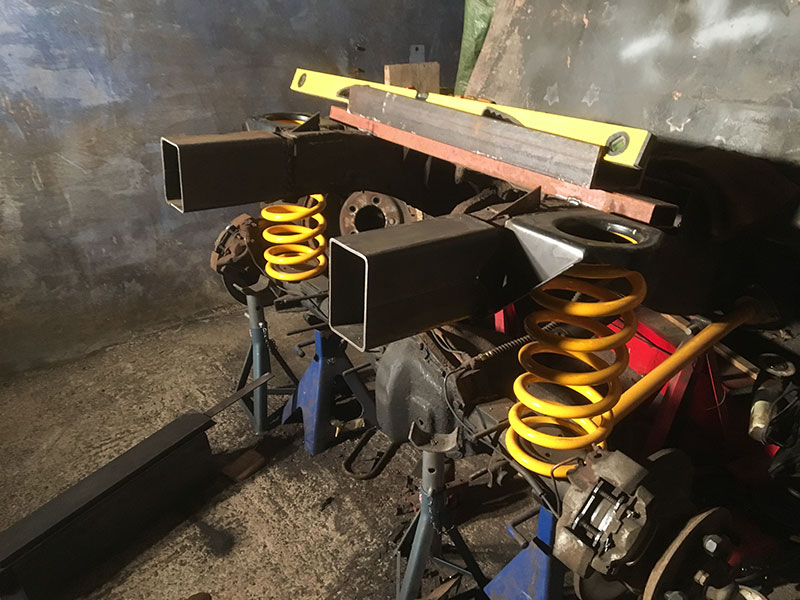

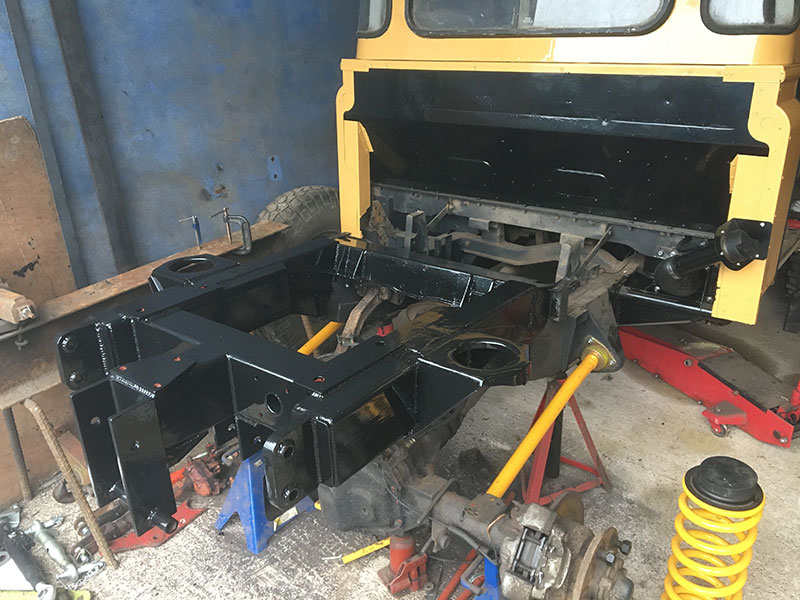

Rear chassis trial fit

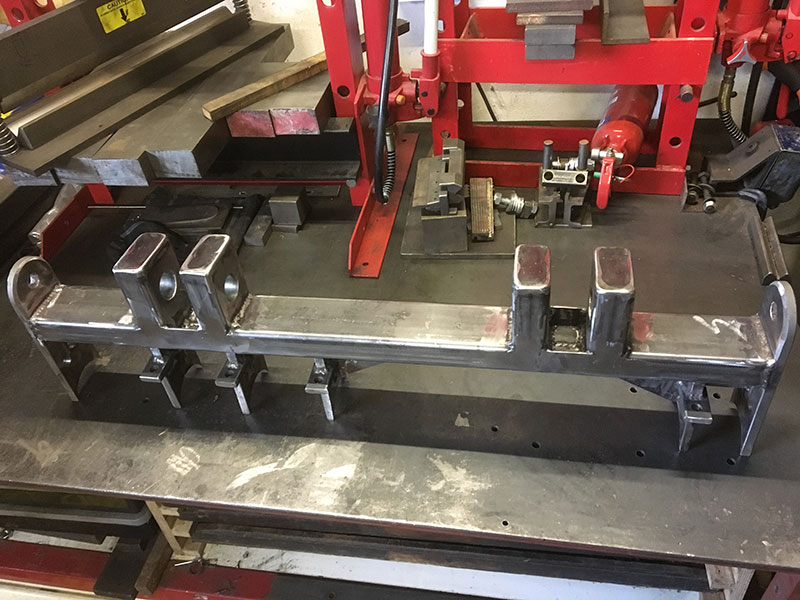

Rear chassis frame welding
Rear chassis frame undercoat

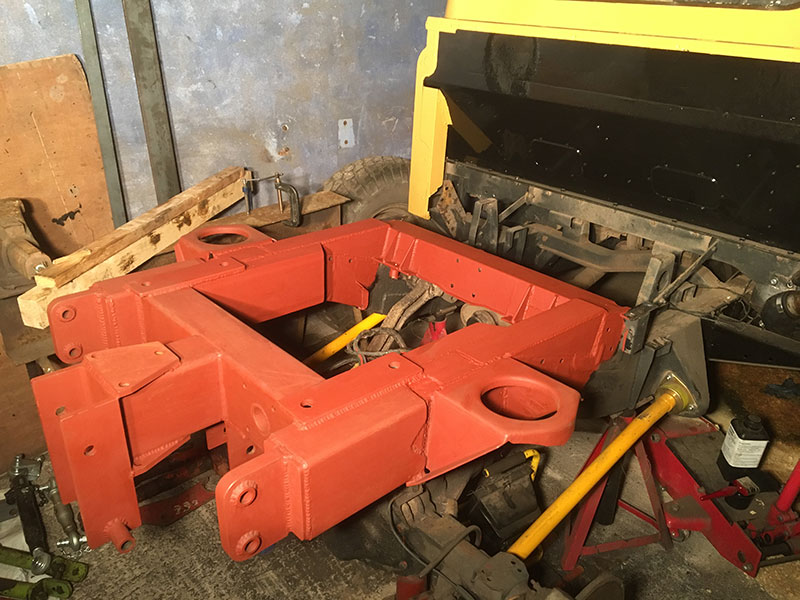

Rear chassis frame painted

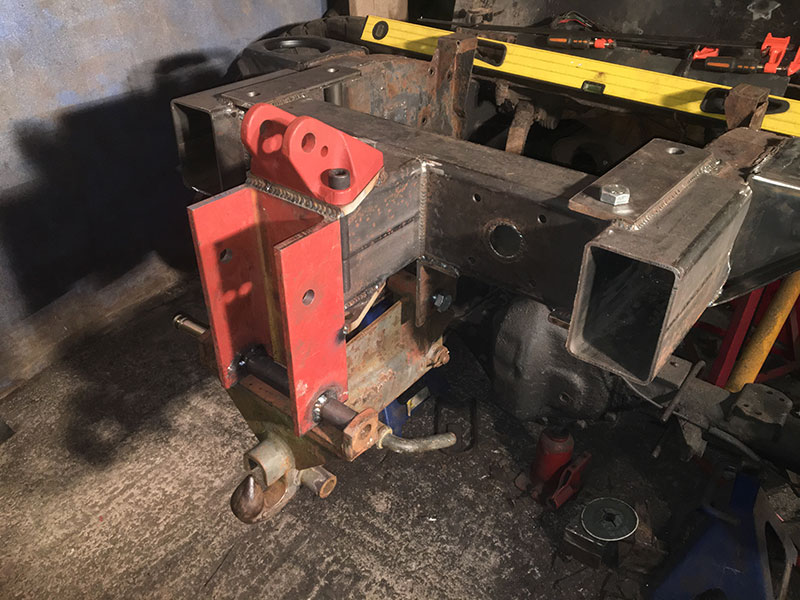

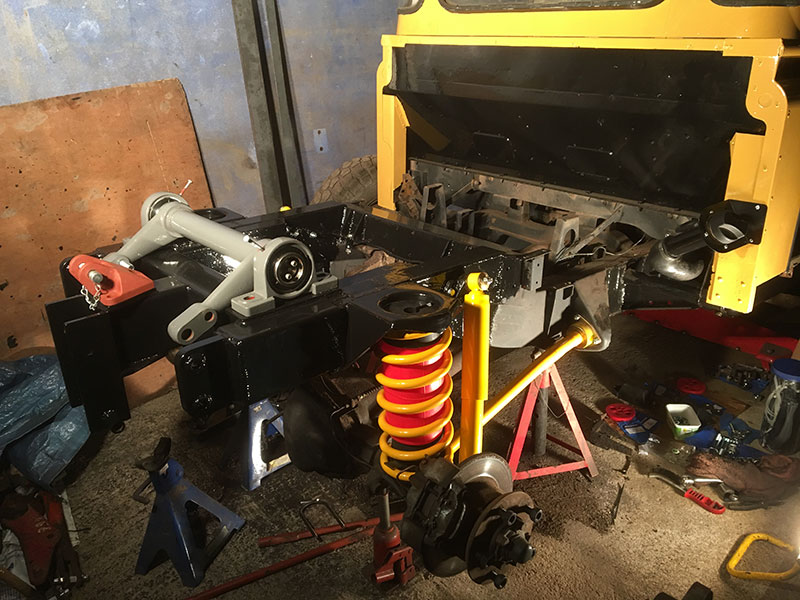

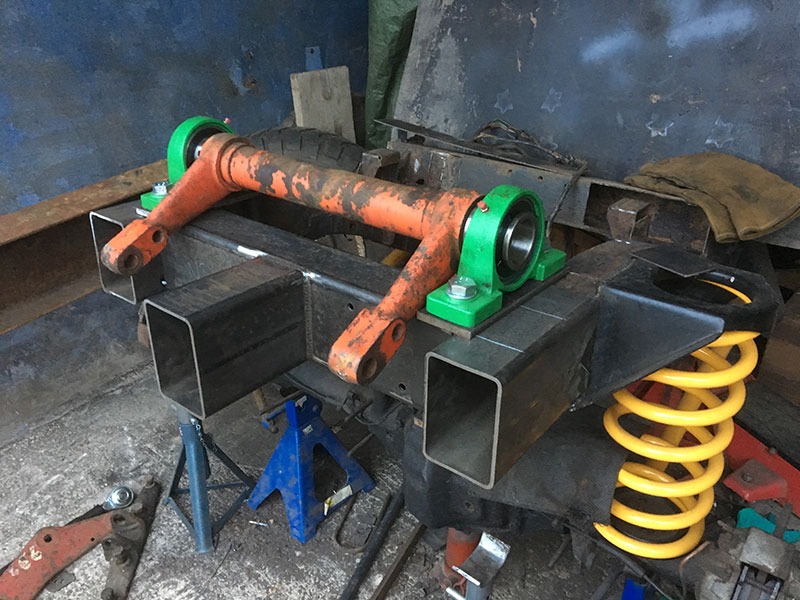

Rear linkage trial fit

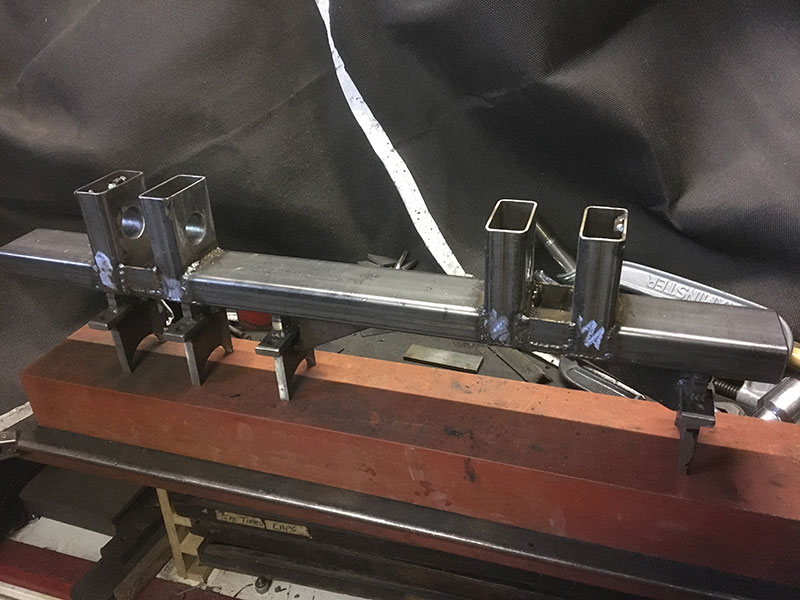

Rear axle lower linkage bracket assembly
Rear axle lower linkage bracket

Hydraulic Spool Valves and Pump.

Hydraulic spool valve trial layout

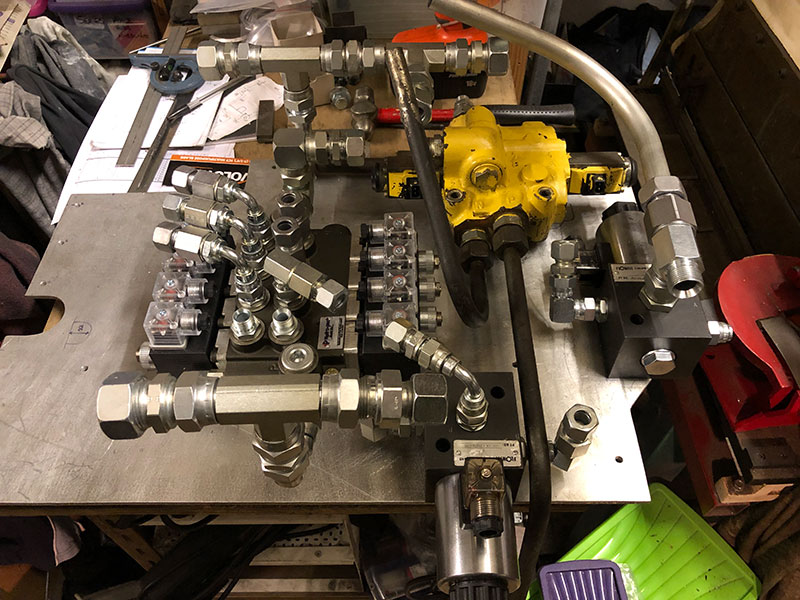

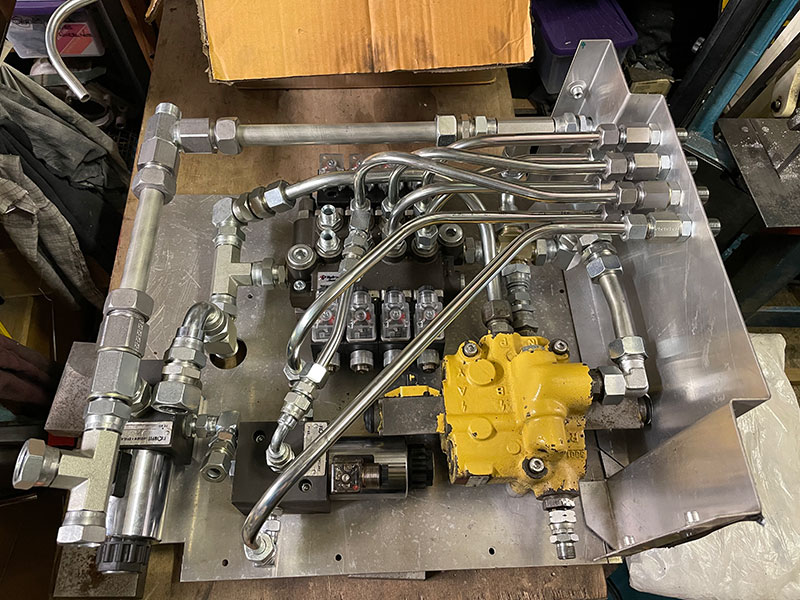

Hydraulic spool valve layout

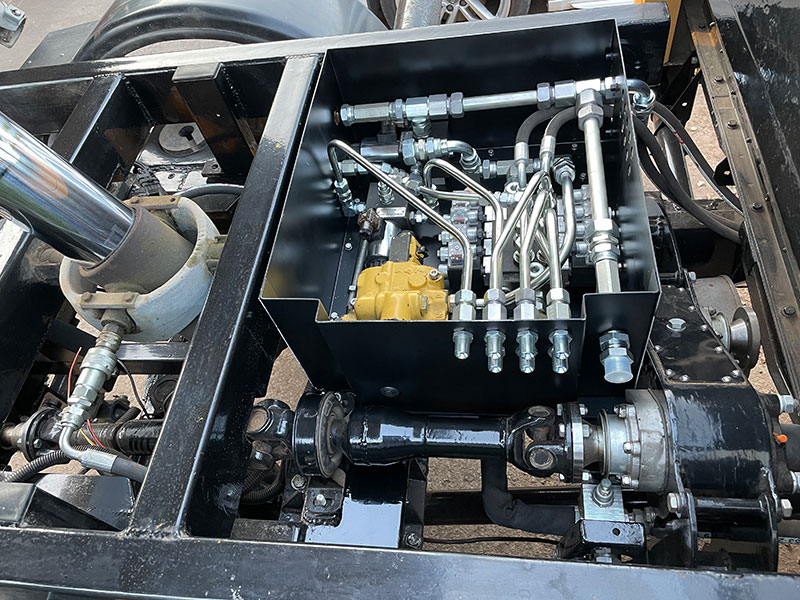

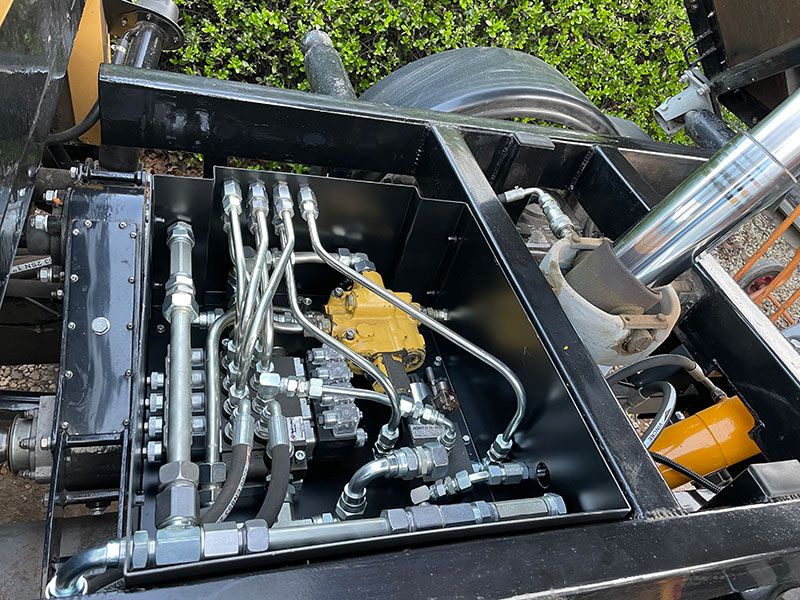

Hydraulic spool valve chassis setup
Hydraulic spool valve chassis setup

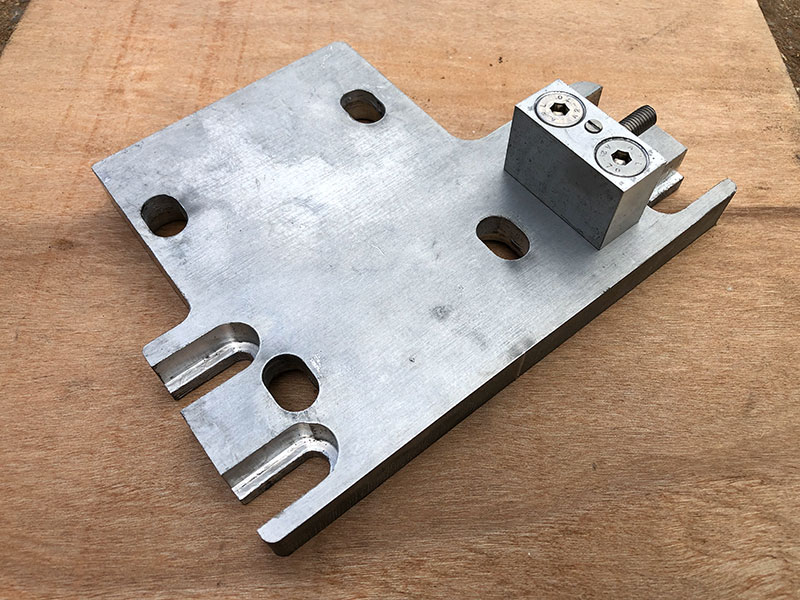

Hydraulic pump engine bracket
Hydraulic pump engine bracket

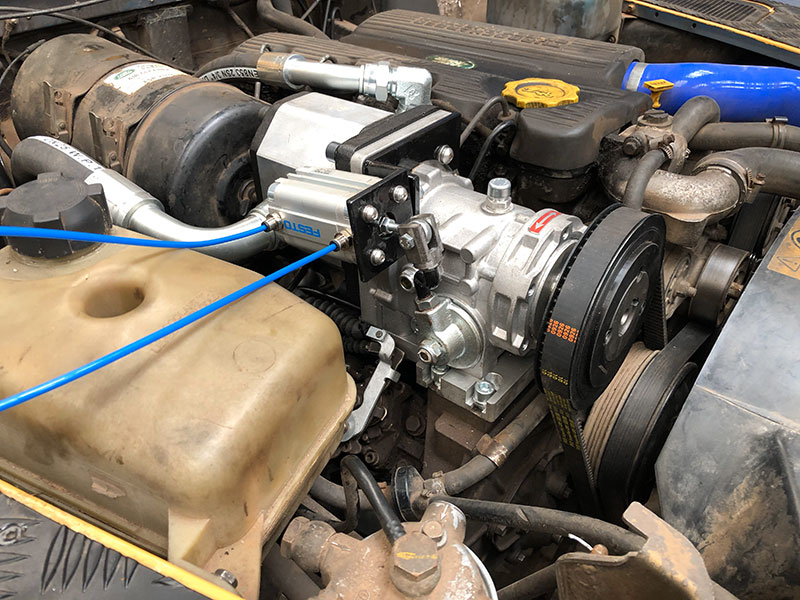

Hydraulic pump and drive clutch
Hydraulic pump and drive clutch

Rear Tipper Fabrication.

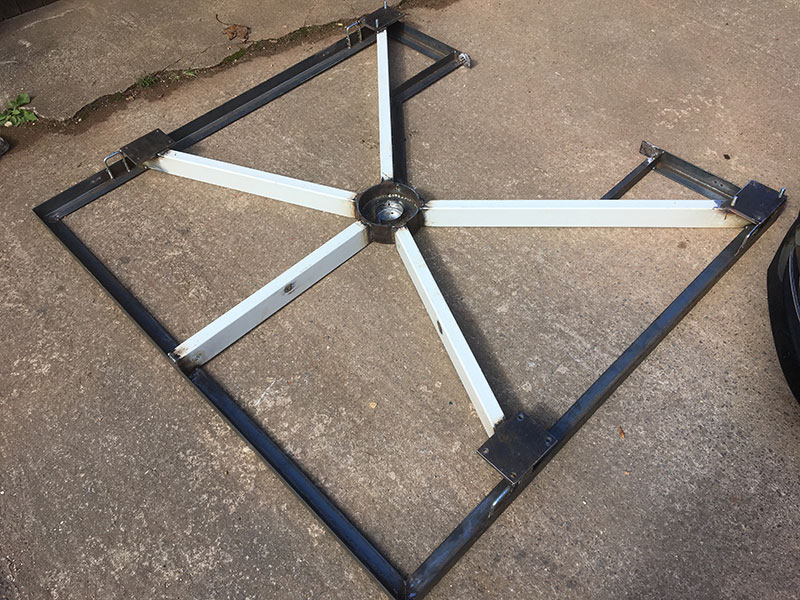

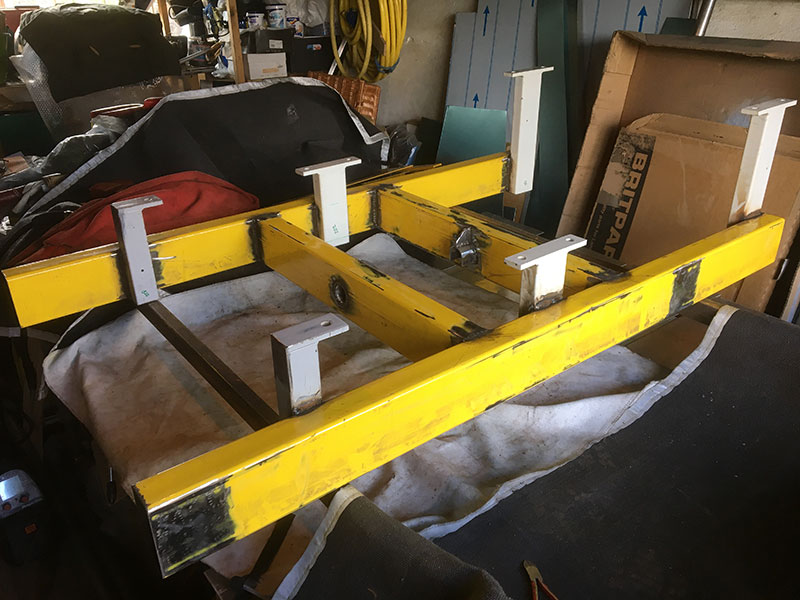

Tipper base frame

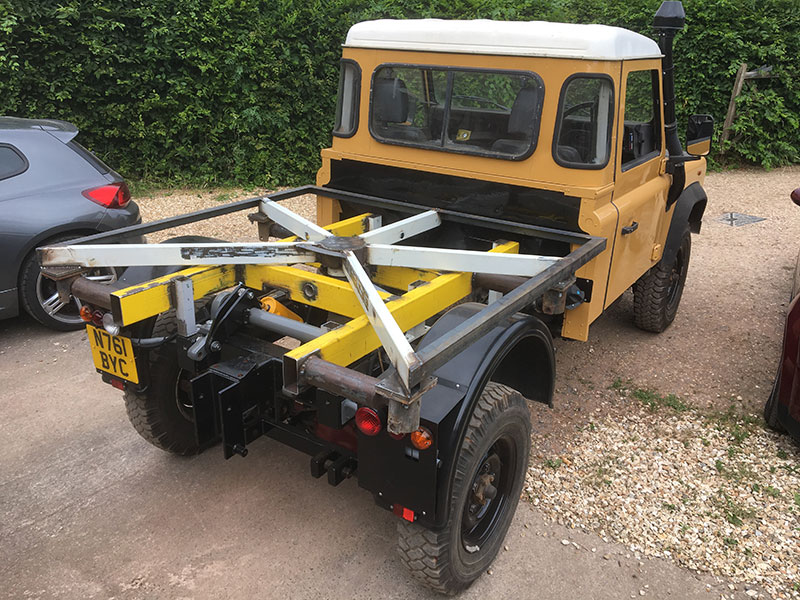

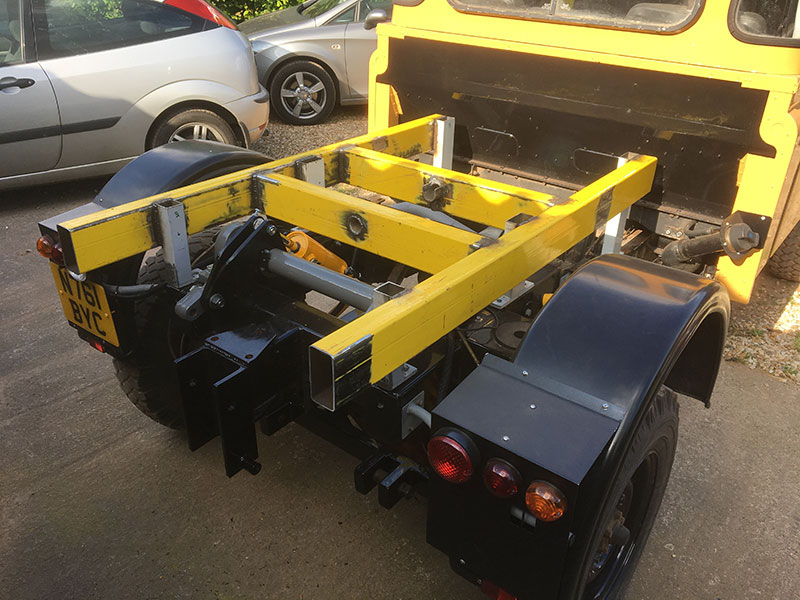

Tipper base frame on chassis
Tipping body frame
Rear tipping body

Air Compressor unit.

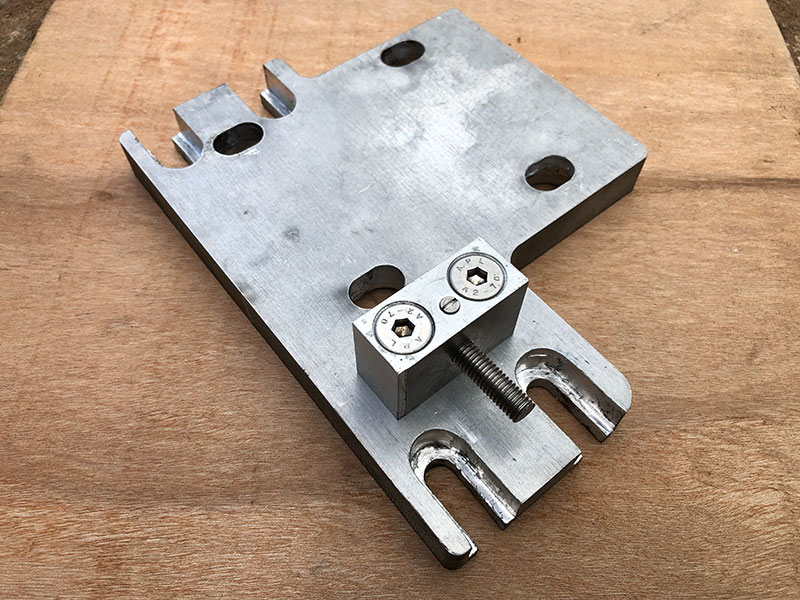

Solenoid valve bracket
Solenoid valve bracket

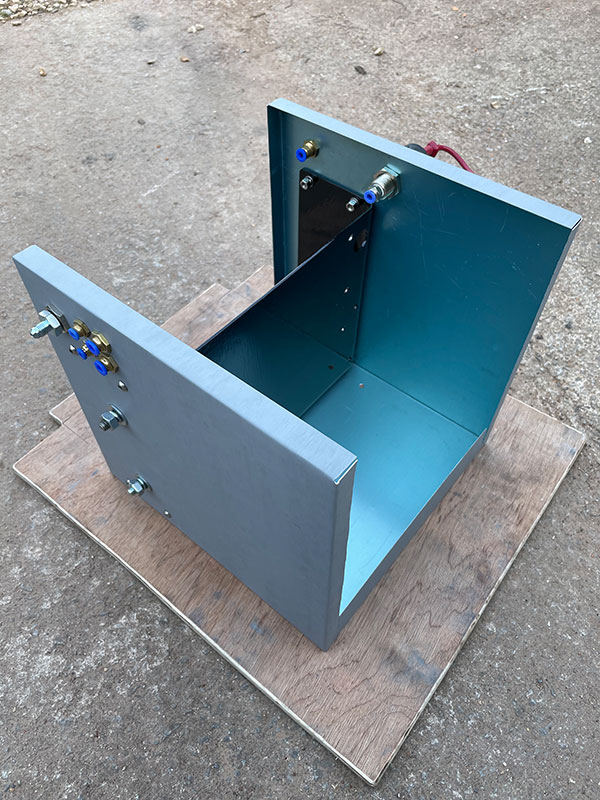

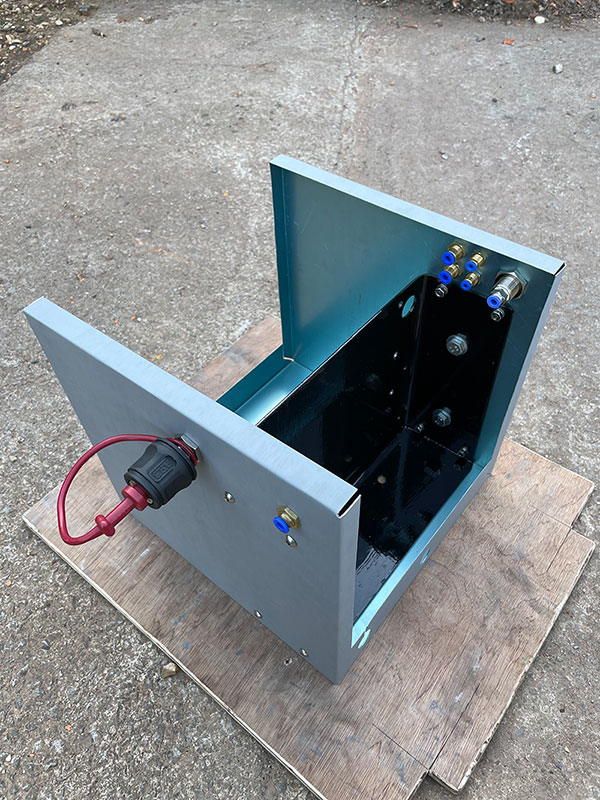

Frame box
Frame box

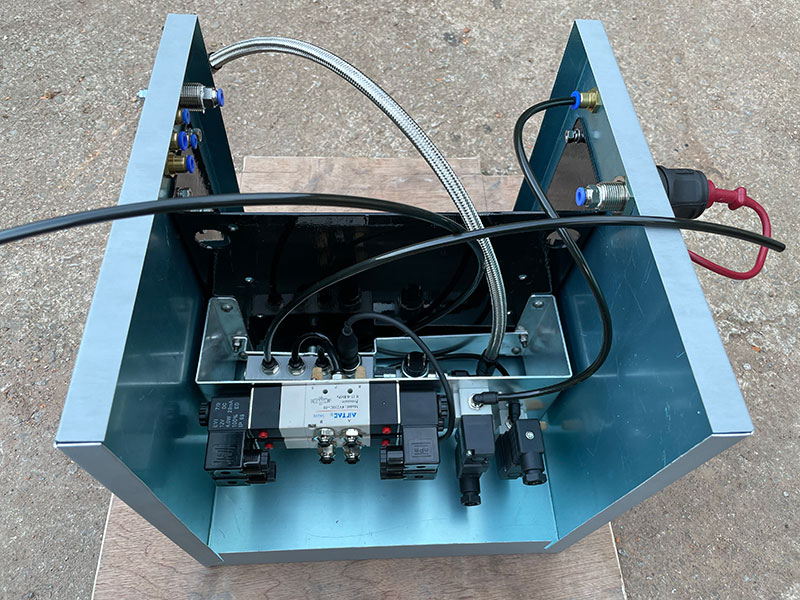

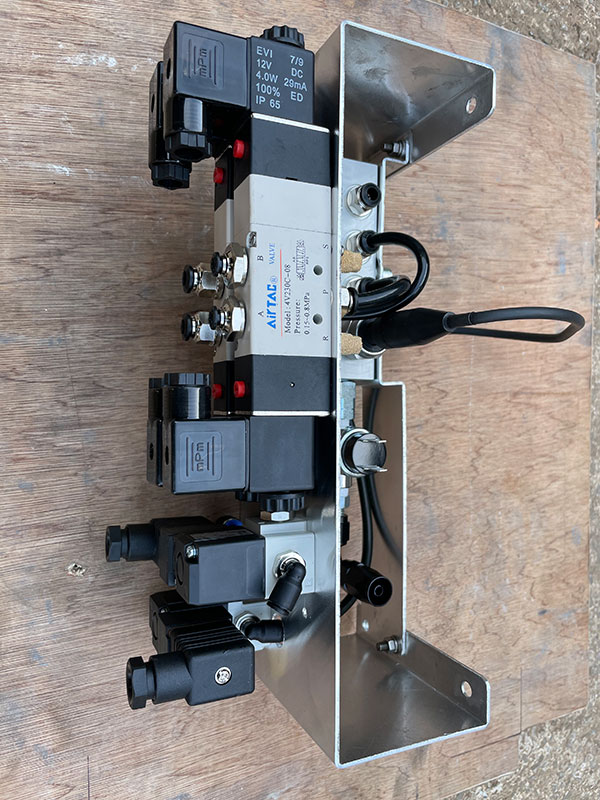

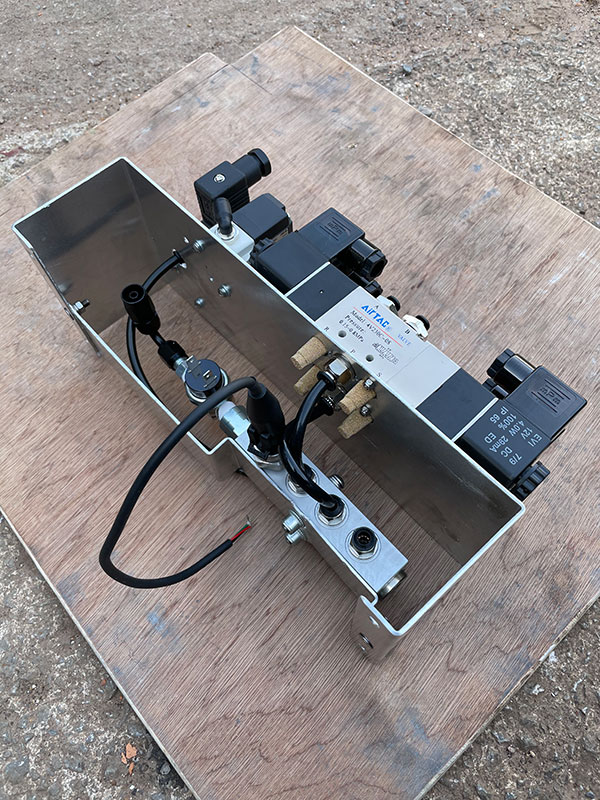

Solenoid bracket mounted to box

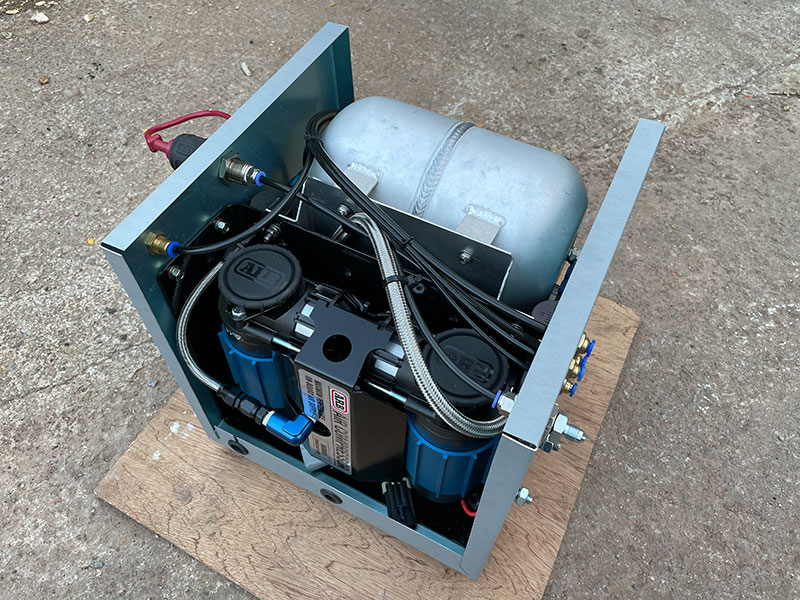

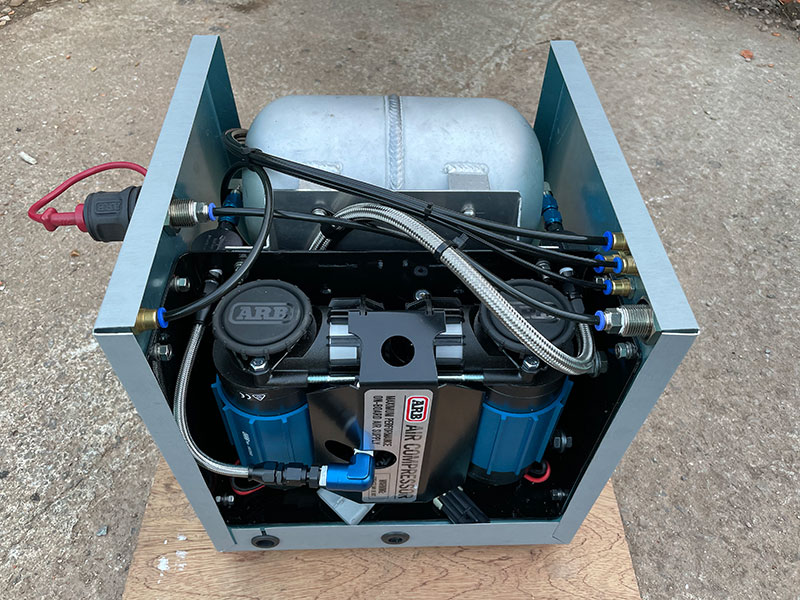

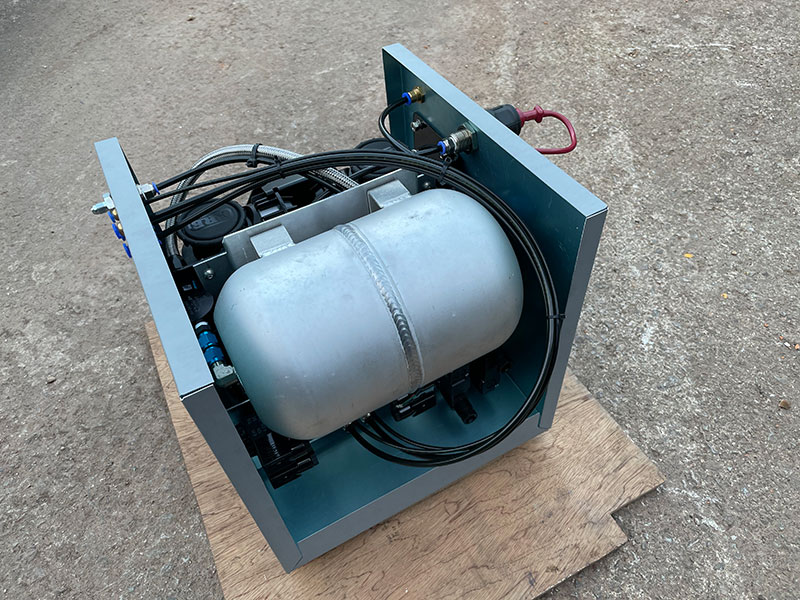

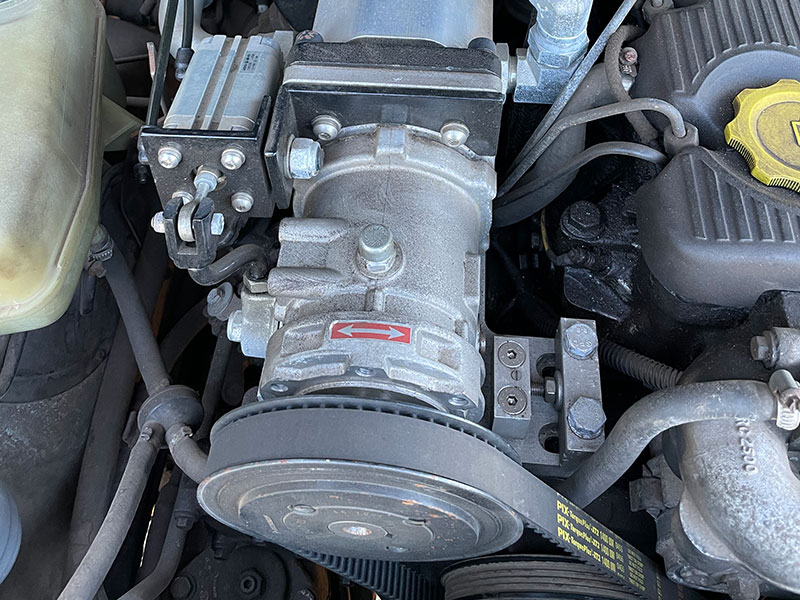

Air compressor and tank
Air compressor and tank
Air compressor and tank

PTO Step Drive.

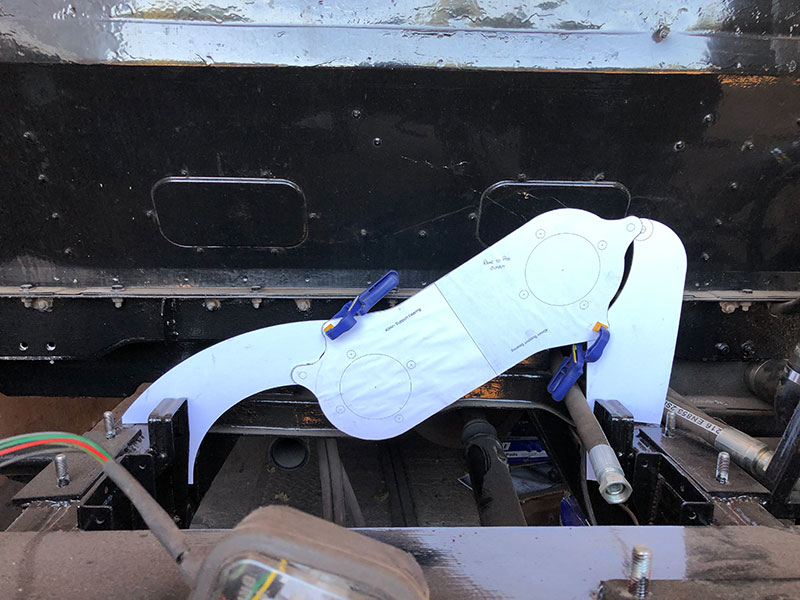

Template trial fitting

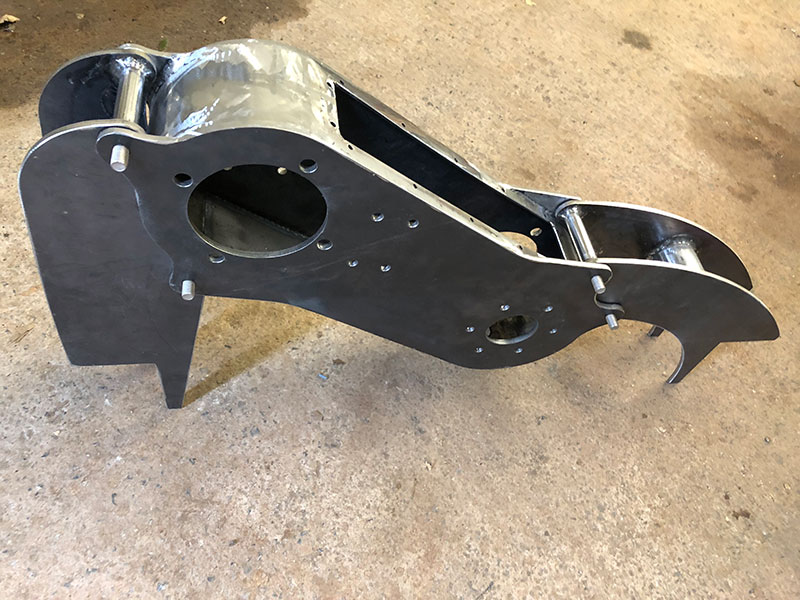

Chain drive case
Case chassis brackets

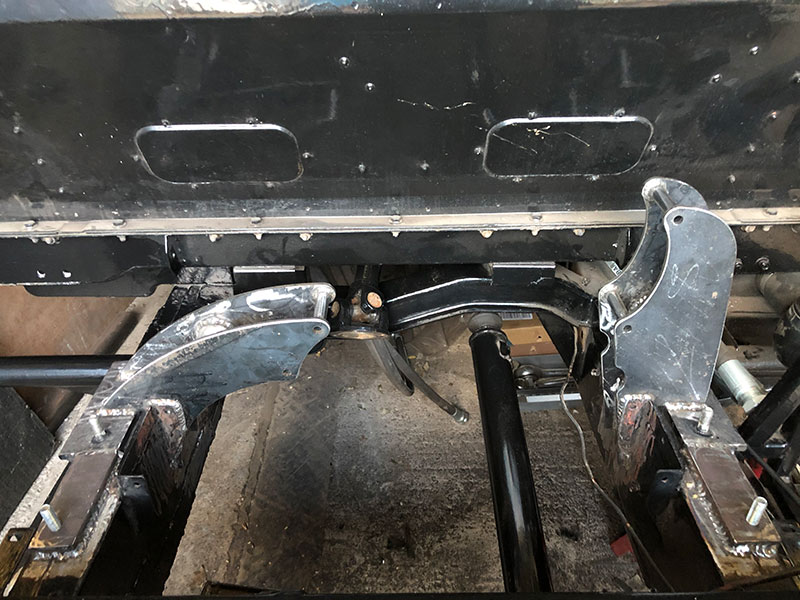

Case brackets welded to chassis

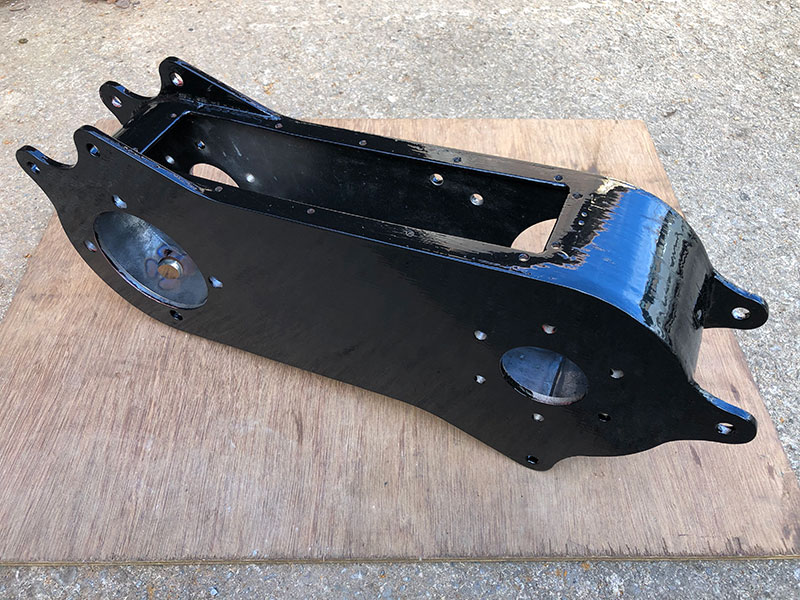

Chain drive case

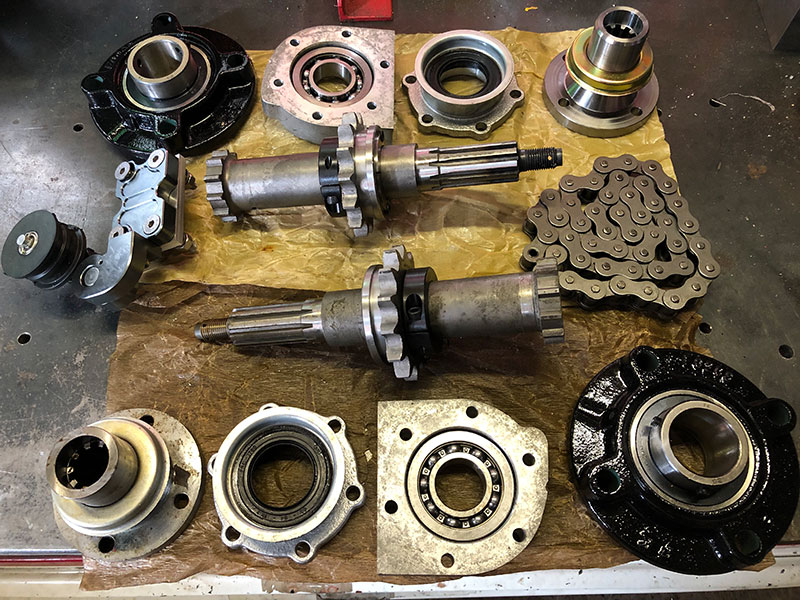

Chain drive components

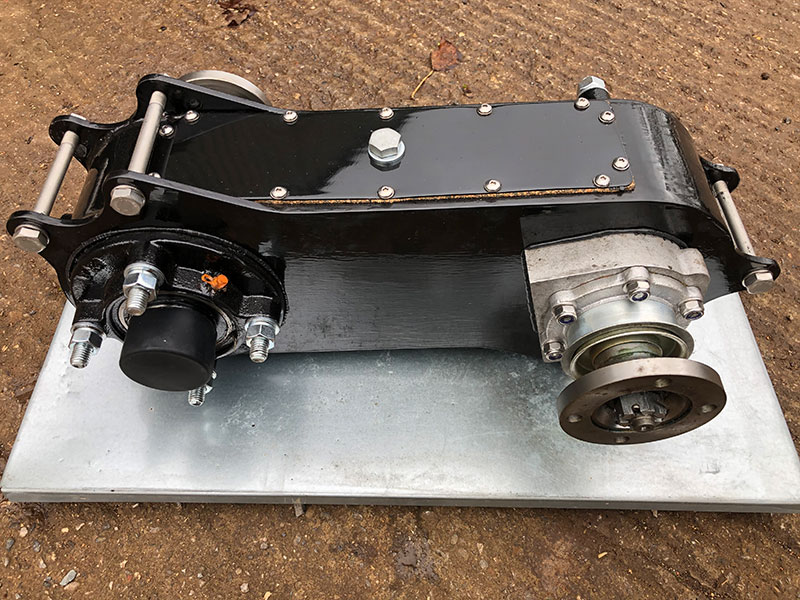

Chain drive unit

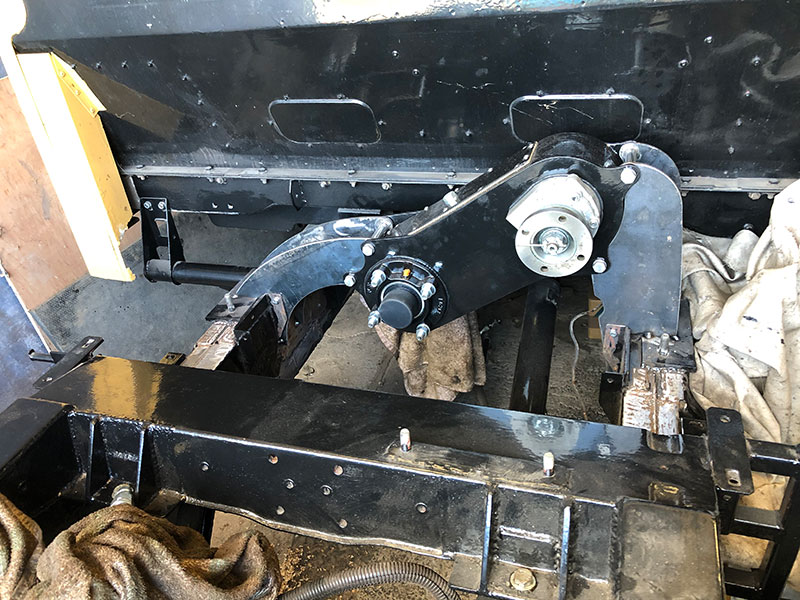

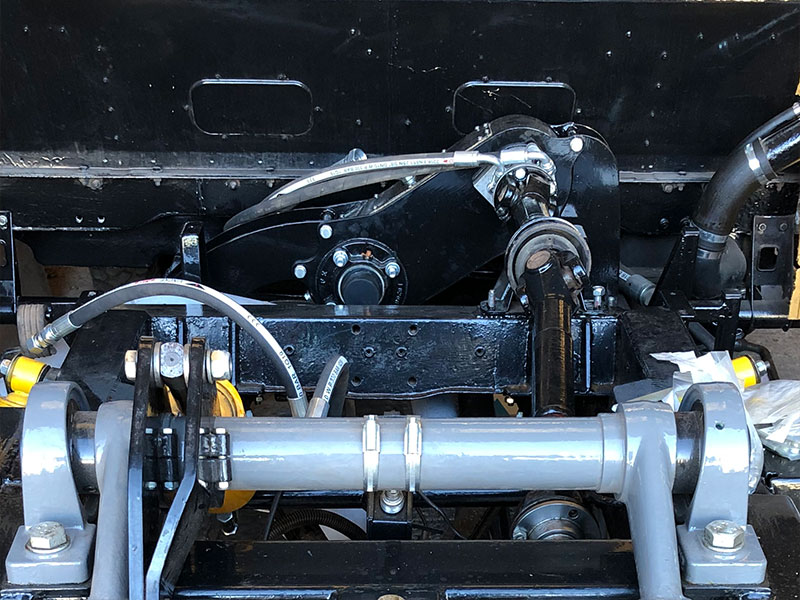

Installed PTO step drive
